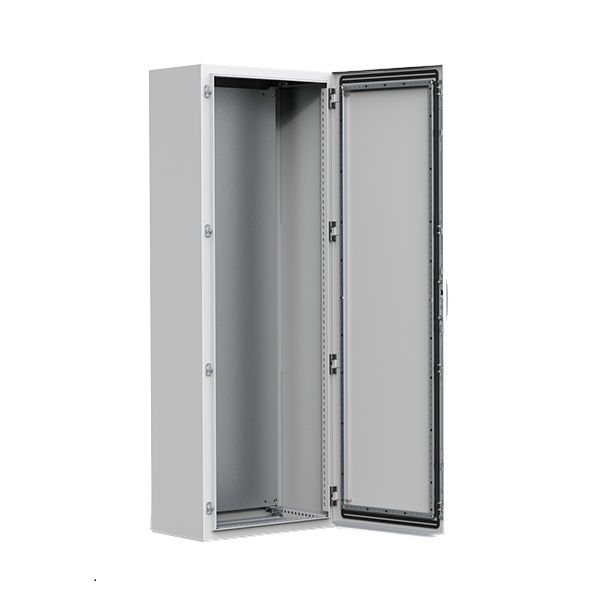

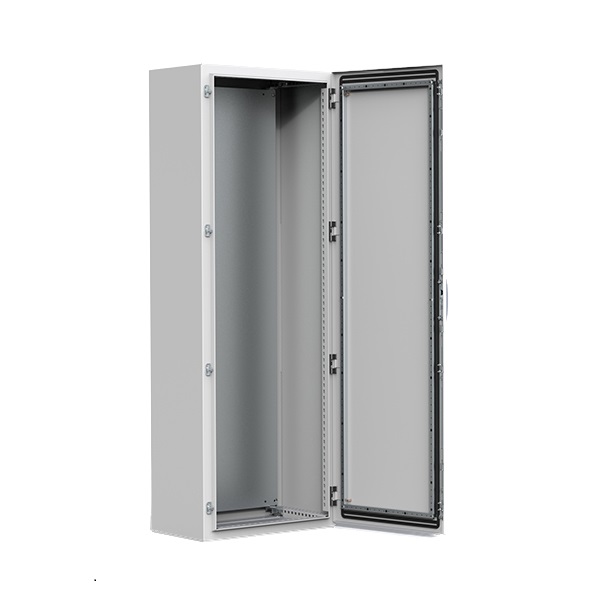

Control cabinet 1800x800x400 mm HWD 1-door IP55 with mounting plate

Switch cabinet 1800x800x400 mm HBT 1-door IP55 as single floor-standing cabinet closed with mounting plate Price display for commercial use only ! after login!
Compact 1-door switch cabinets made of painted sheet steel, closed with side panels,
Rear panel and roof: 1.5 mm painted sheet steel. Door: 2 mm painted sheet steel
with 3 mm thick mounting plate and base plates made of galvanized sheet steel.
Finish: RAL 7035, textured powder coating.
Protection class: Corresponds to IP 55 TYPE 12, 13 IK 10 .
Certificates: CE, CSA, EAC, GOST, Kema Keur - DEKRA, Lloyd's Register, cULus_UL Listed.
Scope of delivery:
Enclosure with door, rear panel, roof plate, base plate, mounting plate and door mounting frame, plus earthing bolts.
Supplied on a pallet with the dimensions of the enclosure width to make it easier to line up the enclosures.
The packaging material is recyclable.
Please order accessories (plinths, locks etc.) separately!
Feature: IP 55 TYPE 12 IK 10

ELDON MKS18084R5 Sheet steel compact
Article no.: MKS18084R5
EAN no.: 8713574127906
Features
Note With mounting plate
Height 1800 mm
Width 800 mm
Depth 400 mm
Mounting plate height 1694 mm
Mounting plate width 694 mm
Max. usable depth
depth of housing 359 mm
Weight 123.00 kg
Weight (kg) 114.00
