straight corrugated pipe screw connection for the watertight connection of closed corrugated pipe to housings, such as control cabinets, terminal boxes, etc., or to connection plugs for
solar applications, photovoltaics as protection against external influences
- weather, martens, birds, bite protection, etc.
Protection class: IP65 (IP68**)
Material: Polyamide 6
Temperature range: -40°C to 120°C
Flame protection: • according to FMVSS 302: < 100 mm/min
Color/design: • Black, gray • External thread: Metric/PG
Properties: • Conical seal on the corrugated hose
• Thread sealing via sealing bars
• Special locking technology

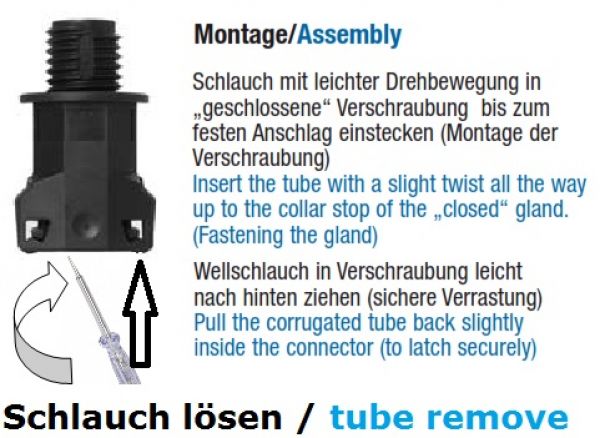

• Simple and quick assembly:
Hose is inserted into the "closed" screw connection
• Corrugated hose can be rotated in the screw connection
• High pull-out forces
• Halogen-free
Accessories: • O-ring seal
Areas of application: • suitable for profiles: Normal, UFW
• Machine and equipment construction
• Ship and railway construction
• Vehicle construction
• Control cabinets
IP 68** To achieve protection class IP 68, install the O-ring in the first corrugation valley after the section of the corrugated hose on the screw connection side.
For NW 50 normal profile, install O-ring seals in the first and second corrugation valley of the hose.
Thread available for NW
M12x1.5 NW7.5 NW8.5 NW10
M16x1.5 NW 10 NW12 NW13
M20x1.5 NW12 NW13 NW 17
M25x1.5 NW17 NW22 NW23
M32x1.5 NW29
M40x1.5 NW37
M50x1.5 NW 50
M63x1.5 NW 50
