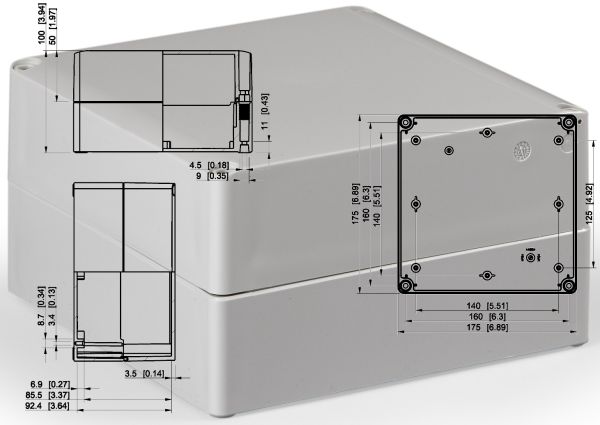

IP66 polycarbonate housing 175x175x100 mm LxWxH

Waterproof plastic housing in a sturdy industrial design with smooth sides.
The use of high-quality polycarbonate in this housing series offers a high level of protection against the effects of the weather, even outdoors.
The internal and foamed seal eliminates the need for subsequent installation of the seal and the housings are
ready for use immediately and the factory-fitted seal also guarantees that the IP66 protection class is maintained.
To avoid condensation, we recommend the use of pressure equalization elements (DAE)!
The housing series is available in 72 different dimensions and designs in 25mm increments and in heights from 35mm to 150mm,
also with pre-stamped sides and/or with UL certification (currently still on request!)
The lower parts are provided with slots for circuit boards and are partly available in different heights of just 25mm or 50mm
This enables better handling for built-in components without compromising on dimensions, or also enables very flat housing solutions.

Seal: Polyurethane
Impact resistance IK08 (-25 °C...+35 °C)
Protection level: IP66/IP67
Permanent operating temperature -40 °C… +80 °C
Flammability UL 746C (5 inch flame) - Flammability raw material UL 94 V-2 / 5VA
Glow wire test 850 °C
Electrical specifications: Nominal insulation voltage AC 1000 V / DC 1500 V
Polycarbonate housing series with smooth sides in 72 different dimensions in 25 mm increments and heights from 35 mm to 150 mm
The lower part of the housing is equipped with special slots for accommodating circuit boards.
Version with UT flat means a very flat lower part with a height of only 25 mm - instead of the normal 50 mm - even with higher housings.
This enables better handling for installations without compromising on dimensions, or also enables very flat housing solutions.
