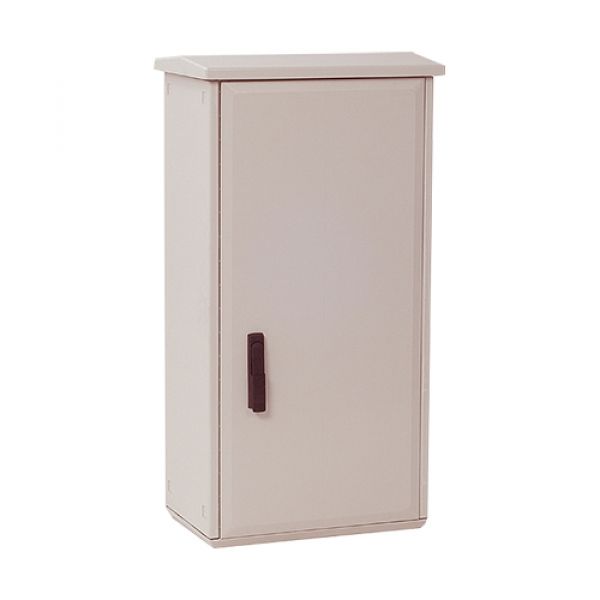

Outdoor housing 1000x750x300 mm HBT with rain roof
Outdoor housing made of glass fiber reinforced polyester composite material (more robust than V2A stainless steel, cheaper than V4A stainless steel)

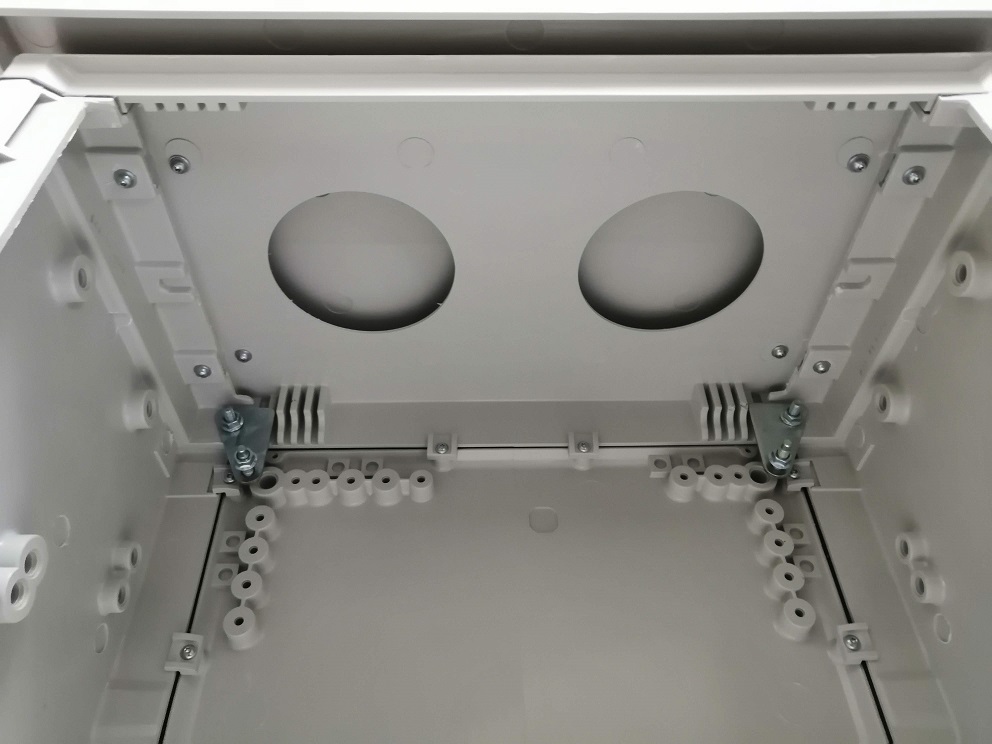

Plastic outdoor housing with DDB lock with ventilated rain roof
Mounting plate, cylinder locks or handles for PHZ as accessories
Color: light gray - RAL7035
Technical data
Certifications
According to low tension directive 2014/35/EU.
Norms: UNE-EN 62208 and UNE-EN 61439-1-3 (in the affected part).
Plastic outdoor housing with DDB lock with ventilated rain roof
Mounting plate, cylinder locks or handles for PHZ as accessories
Color: light gray - RAL7035
Technical data
| Degree of protection | IP55 |
| Resistance to impact | |
| Opaque door | IK10 |
| Transparent door | IK08 |
| Ambient temperature range | -30 ºC / +60 ºC |
| Test of resistance to glow wire | 960 ºC |
| Thermal class | 150 ºC |
| Maximum rated operating voltage | 1000 V AC / 1500 V DC |
| Double insulation | Class II |
According to low tension directive 2014/35/EU.
Norms: UNE-EN 62208 and UNE-EN 61439-1-3 (in the affected part).
