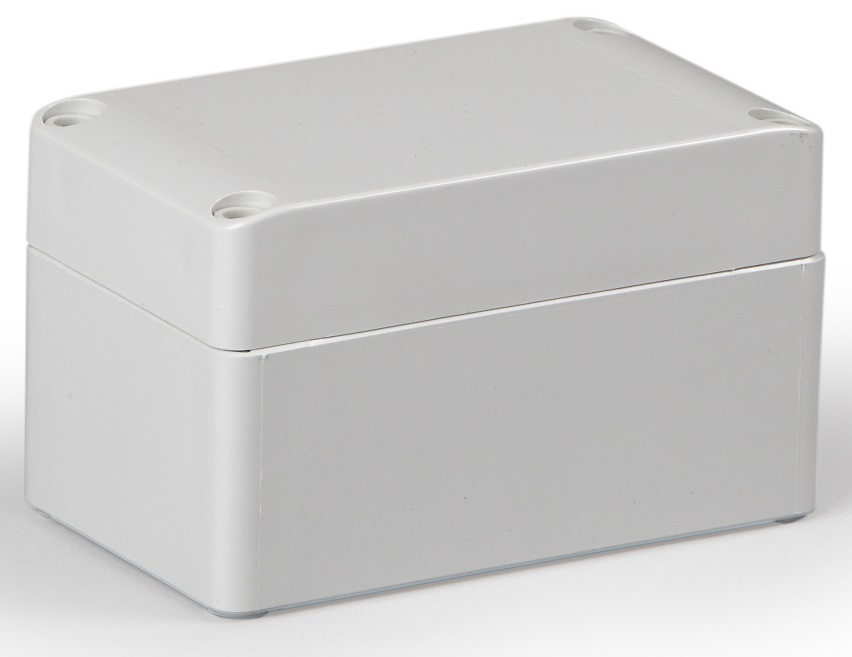

Polycarbonate housing 125x75x75mm LxWxH IP66

Waterproof plastic housing in a stable industrial design with smooth sides.
The use of high-quality polycarbonate in this series of cases offers a high level of protection against the effects of the weather, even outdoors.
The internal and foamed seal eliminates the need for fiddly and difficult subsequent assembly of the seal,
The housings are ready for immediate use and the factory seal guarantees that protection class IP66 is maintained at the factory.
Since no seal has to be installed, compliance with the protection class is not transferred to the customer
(as is usually the case with cheaper plastic housings), and the housings are also reliably protected from moisture outdoors.
To avoid condensation, we recommend the use of pressure compensation elements (DAE)!
The housing series is available in 72 different dimensions and designs in a 25mm grid and in heights from 35mm to 150mm,
Additionally also with pre-embossed sides and/or with UL certification (currently still on request!)
The lower parts are equipped with slots for holding printed circuit boards and are sometimes available in different heights of just 25mm or 50mm
This enables better handling of installations without sacrificing dimensions, or also enables very flat housing solutions.

Seal: Polyurethane
Impact resistance IK08 (-25 °C...+35 °C)
Protection level: IP66/IP67
Permanent operating temperature -40 °C… +80 °C
Flammability UL 746C (5 inch flame) - Flammability raw material UL 94 V-2/5VA
Glow wire test 850 °C
Electrical information: Rated insulation voltage AC 1000 V / DC 1500 V
