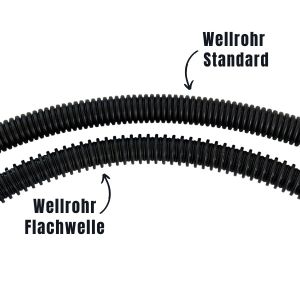

Cable protection corrugated pipe PPMOD NW17 slotted (ADR/GGVS) outer Ø 21,1 / inner Ø 16,2 mm with flat corrugation - means more cable protection and increased flexibility.
Single-slotted for use as cable protection for loosely laid single cables & wires or for cable marking or labelling.
This coloured corrugated conduit is used to mark and protect cable harnesses in electric vehicles and is also suitable for protecting retrofitted cables in vehicle interiors and bodywork and when installing audio, video and hi-fi equipment.
The bright orange colour clearly highlights and protects cables.
Installation is also much easier than with spiral tape or braided sleeving, and the protection of internal cables or lines is also much better, as the largely closed corrugated tube leaves no gaps or areas uncovered.
• Resistant to most chemicals and automotive fluids
• Flat inner shaft to protect the cables from vibration damage
• Large inner contact surface
• Very flexible when laying around tight radii
• High pressure resistance
• Manifolds and accessories can be used
This protective conduit is characterised by
+ the option of pulling in additional cables at a later date
+ temperature resistance up to 150°C/500h
+ as an alternative to winding tape for cable harnesses
+ excellent flexibility
Material properties:
Material: modified polypropylene
Temperature range: 3000 h: -40°C to 135°C / 500 h: -40°C to 150°C
Flame protection: - according to FMVSS 302: self-extinguishing - burning rate 0 according to DIN 75200
Colour(s)/version(s): orange - slotted / closed on request
Areas of application: Vehicle interior, bodywork and electric motor
The filling level should be max. approx. 80% of the ID!
Slight deviations possible due to manufacturer.
