straight screw connection M12 metric on corrugated tube NW8.5

easy to assemble and cheap corrugated pipe screw connections with conical corrugated pipe connection inside.
The corrugated tube is simply inserted into the screw connection and it snaps securely into place at the end.

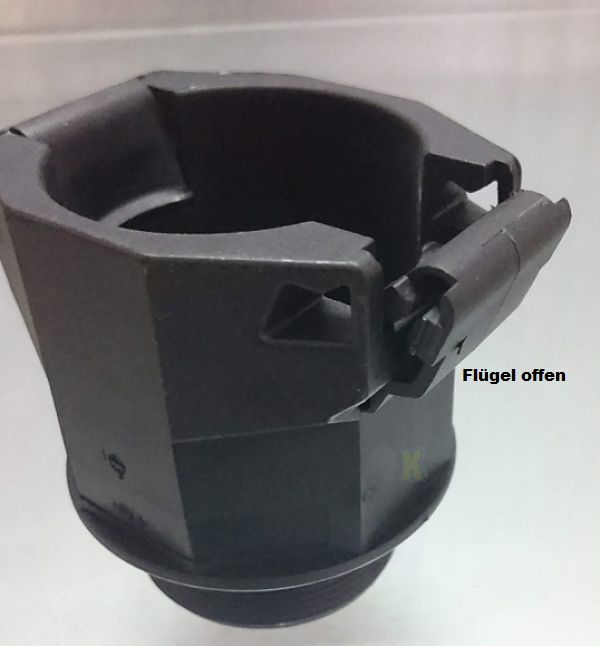

To loosen the corrugated pipe again, the retaining lugs in the screw connection are simply loosened with a screwdriver and can then simply be pushed back into the original position.
Thus the screw connection is ready for a new use.

Degree of protection: IP65 (IP68**)
Material: Polyamide 6
Temperature range: -40°C to 120°C
Flame protection: • according to FMVSS 302: < 100 mm/min
Color(s)/Finishes: • Black, grey
• Male Thread: Metric/PG
Characteristics:
• Conically sealing on the corrugated hose
• Thread sealing via sealing webs
• Special locking technology
• Quick and easy assembly:
The hose is inserted into the "closed" screw connection
• Rotatable corrugated hose in the screw connection
• High pull-out forces
• Halogen free

Accessories: • O-ring seal
Areas of application:
• Suitable for profiles: Normal, UFW
• Mechanical and apparatus engineering
• Ship and railway construction
• Vehicle construction
• Control cabinets

IP 68** - to achieve protection class IP 68, mount the O-ring in the first corrugation trough after the section of the corrugated hose on the screw connection side.
With NW 50 normal profile, mount O-ring seals in the first and second corrugation trough of the hose.
