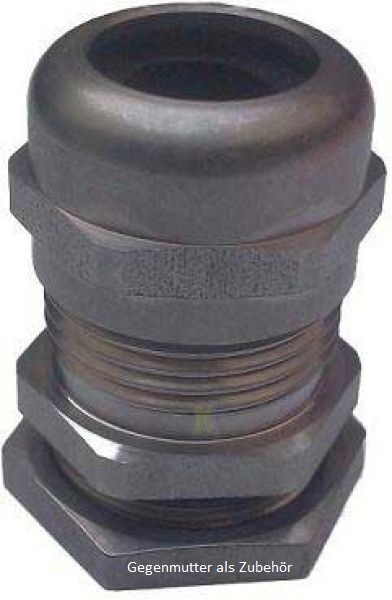

V2A cable gland M50x1.5 stainless steel 1.4305 IP68
NEW
Stainless steel cable gland made of V2A 1.4305 blank, with continuous, ejectable sealing insert made of TPE and O-ring made of NBR on the connecting thread
Temperature range -40°C - +100°C
Degree of protection IP68 - bar 5
Temperature range -40°C - +100°C - -20 °C / +100 °C (dynamic) -40°C (static, short-term)
Protection class IP68 - bar 5 (*IP69K tested for M12 - M25, M50, M63)
Delivery without lock nut
1 piece V2A lock nut, stainless steel 1.4305, bright
Temperature range -40°C - +100°C
Degree of protection IP68 - bar 5
| A | ØC | L | SW1 | SW2 | H | VPE |
| M12x1,5 | 3 - 6 mm | 5 | 14 | 14 | 25 | 50 Stück |
| M16x1,5 | 5 - 9 mm | 5 | 17 | 17 | 29 | 50 Stück |
| M20x1,5 | 9 - 13 mm | 6 | 22 | 22 | 33 | 50 Stück |
| M25x1,5 | 11 - 16 mm | 7 | 27 | 27 | 35 | 50 Stück |
| M32x1,5 | 14 - 20 mm | 8 | 34 | 34 | 42 | 25 Stück |
| M40x1,5 | 19 - 27 mm | 8 | 43 | 43 | 42 | 10 Stück |
| M50x1,5 | 24 - 35 mm | 9 | 55 | 55 | 50 | 5 Stück |
| M63x1,5 | 32 - 42 mm | 10 | 65 | 65 | 52,5 | 5 Stück |
Temperature range -40°C - +100°C - -20 °C / +100 °C (dynamic) -40°C (static, short-term)
Protection class IP68 - bar 5 (*IP69K tested for M12 - M25, M50, M63)
Delivery without lock nut
1 piece V2A lock nut, stainless steel 1.4305, bright
