Product No.:
CSN04-44618
3-5 days EU - worldwide maybe lo 3-5 days EU - worldwide maybe lo (abroad may vary)
Stock:
3 pieces
58,95 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

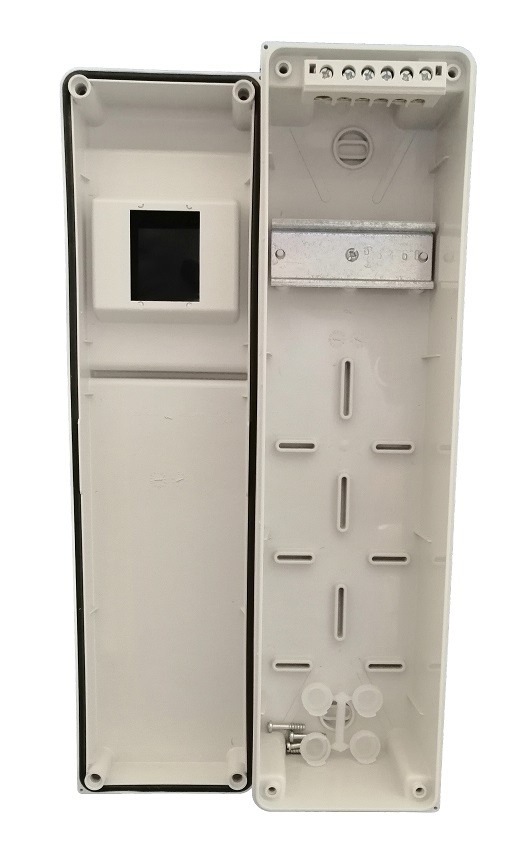

IP65 socket distribution box CSN4PT/R with 4TE incl. DIN rail, N/PE terminals and accessories

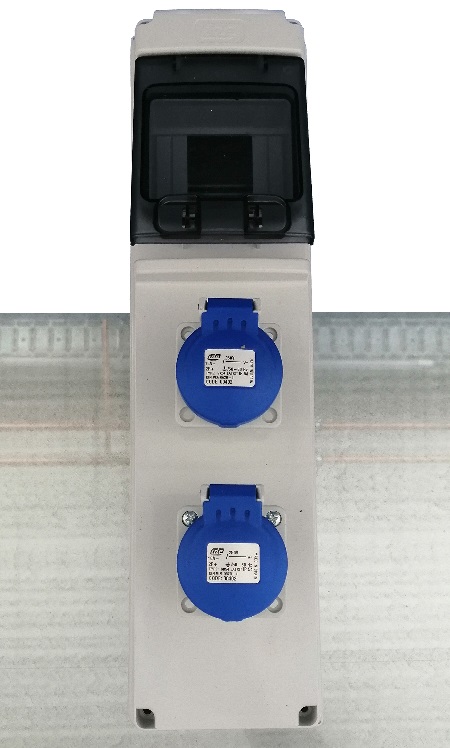

Equipped with 2x 230V blue Schuko sockets IP54 pre-wired
Overall protection class: IP54

Housing made of high-quality ABS plastic for industrial sockets and LS/Fi switches
Protection class IP65, VDE certified with transparent flap, changeable stop
Division: 1x4TE

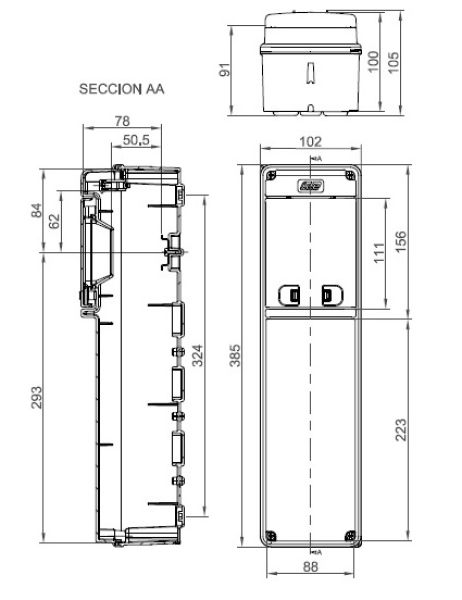

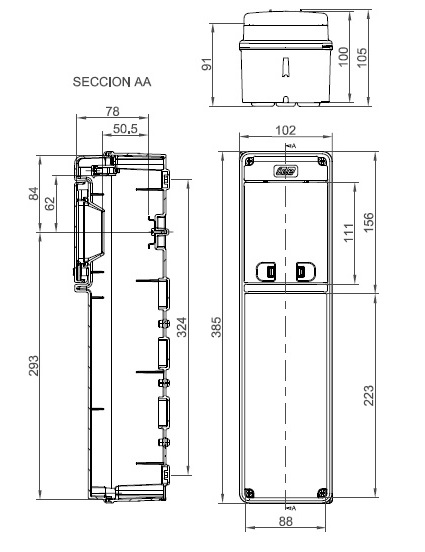

Dimensions: HxWxD 385x102x105 mm
Technical specifications
Degree of protection IP65
Impact resistance IK08
Glow wire resistance 650ºC
Ball pressure 70ºC
Ambient temperature range -25ºC / 40ºC
Maximum operating voltage 1000V AC / 1500V DC
Double insulation protection class II
In accordance with Directive 2014/35/EU.
Standards: UNE-EN 62208 and UNE-EN 61439-1 (in the relevant parts).
